Project HADES — Closed-Loop Airbrakes
Apogee-targeting airbrakes on a Teensy 4.1, with Kalman/Madgwick estimation, CFD-based guidance and hardware-in-the-loop simulation. Flight scheduled for October 2026.
Team: MASA-Dearborn, Team 45 · Season: 2025–26 · Competition: IREC 2026, 10k ft COTS category · Flight: rescheduled to October 2026 · My role: Project Lead, Airbrakes Electrical · Code: MASA-Dearborn/HADES-Airbrakes
Overview
H.A.D.E.S. (High Altitude Demonstrator for Electromechanical Systems) is MASA-Dearborn’s 2026 competition rocket. It is a single-stage, 6-inch, 3.74 m vehicle on an AeroTech N3300R, with a liftoff mass of about 40.6 kg. On that motor it would coast well past the 10,000 ft (3,048 m) target, so the airbrakes have to remove that extra energy.
Where Vulcan used a threshold-based deployment, HADES closes the loop. The flight computer predicts apogee continuously during coast and commands the flap opening needed to hit the target.

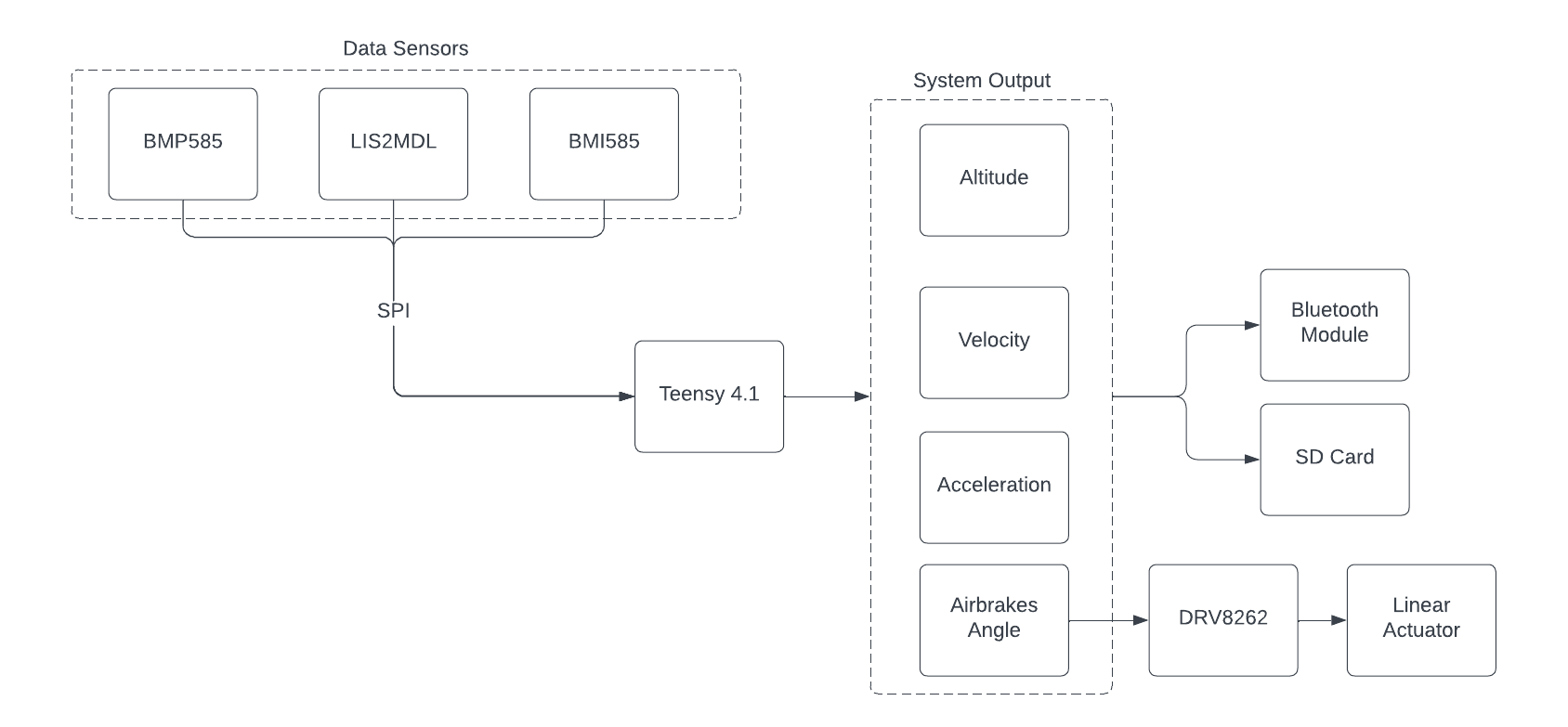

Hardware
| Function | Part |
|---|---|
| Microcontroller | Teensy 4.1 |
| IMU | Bosch BMI088 (accel + gyro) |
| Barometer | Bosch BMP585 |
| Magnetometer | ST LIS2MDL |
| Actuation | Linear actuator + TI DRV8262 H-bridge, Hall-effect position feedback |
| Logging | Binary flight log to SD |
| Power | 4 × 18350 Li-ion cells (≈13 Wh usable) |

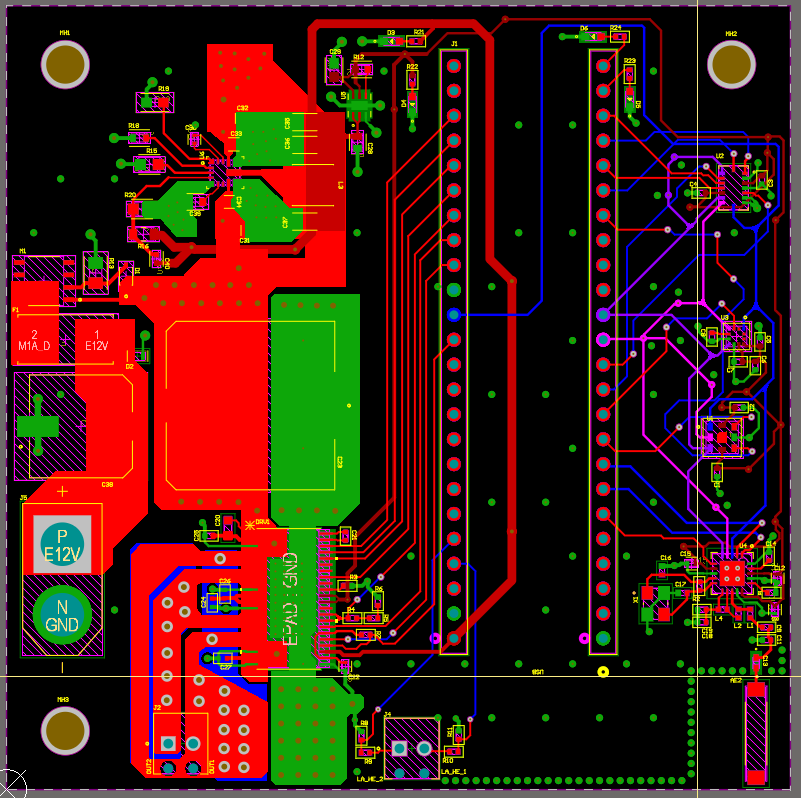

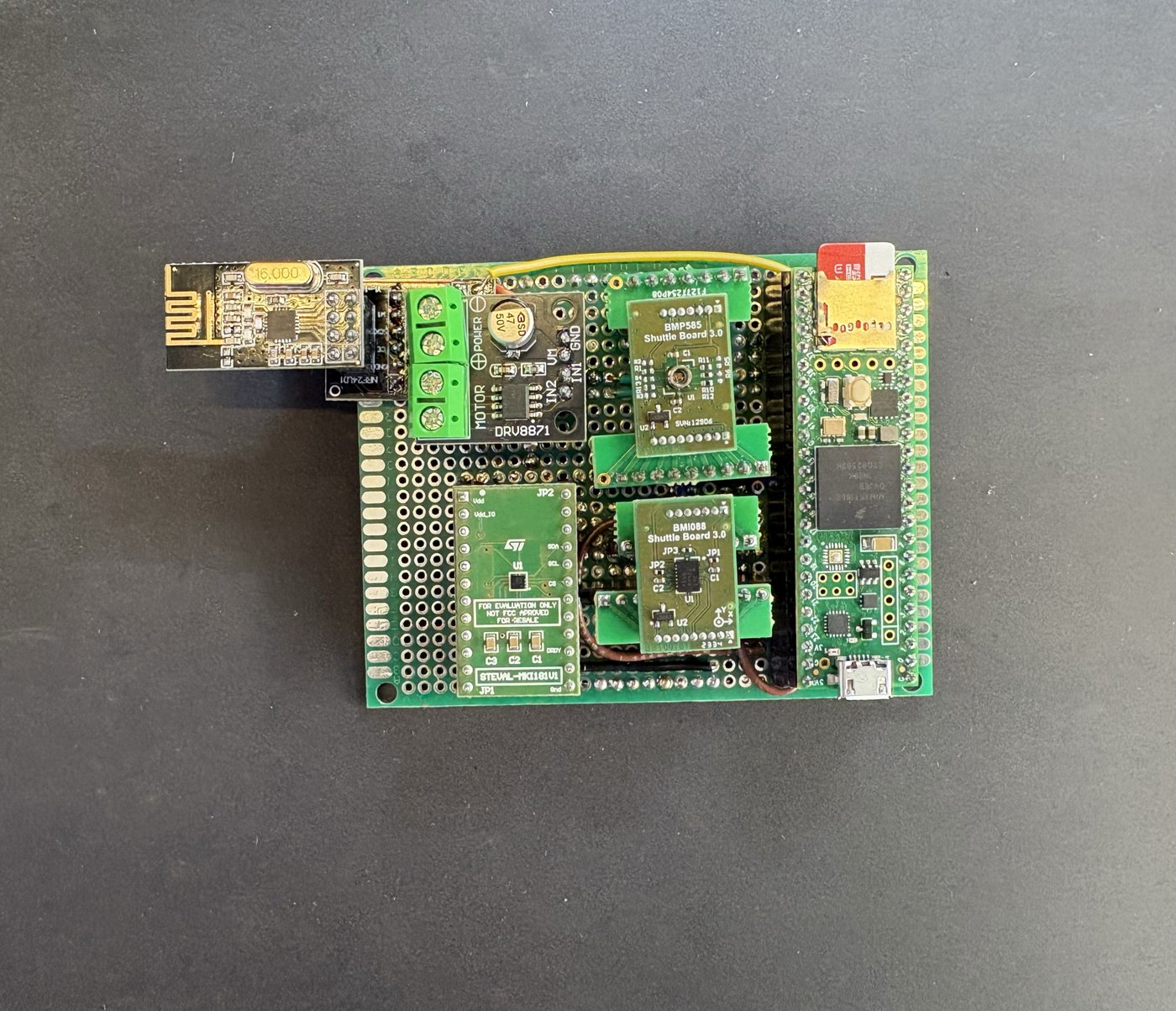

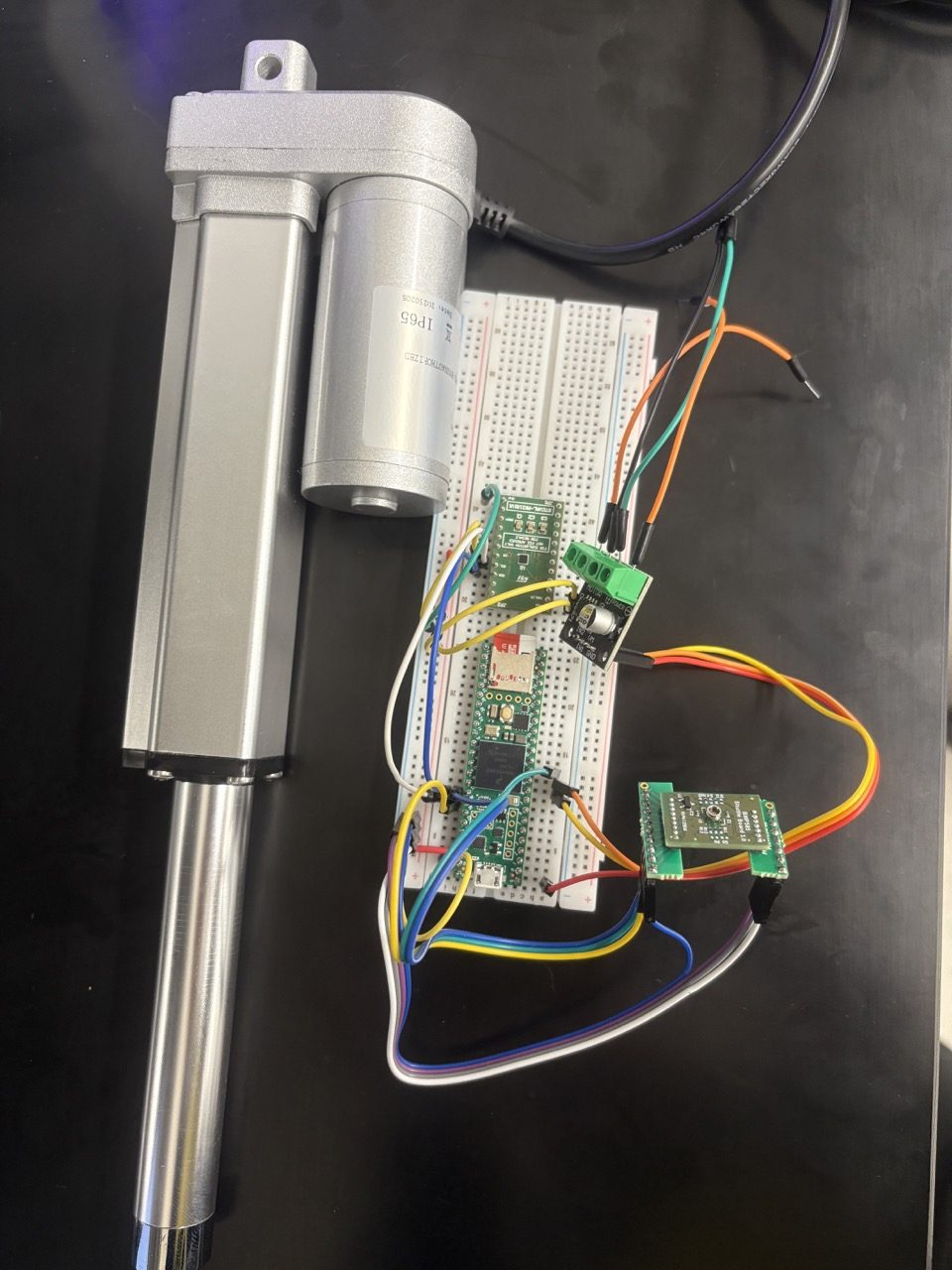

Sensors are on SPI and the actuator is driven by PWM. We picked each sensor for noise performance, sample rate and robustness to vibration. Integration started on dev boards and a perfboard prototype, then moved to a custom PCB.
State estimation
Attitude (Madgwick). A quaternion filter integrates the gyro and corrects with the accelerometer. The correction only runs when the measured acceleration is between 0.5 and 1.5 g, so boost and free-fall don’t corrupt it. The estimated tilt feeds a 30° tilt lock: past that, the brakes are inhibited or retracted.

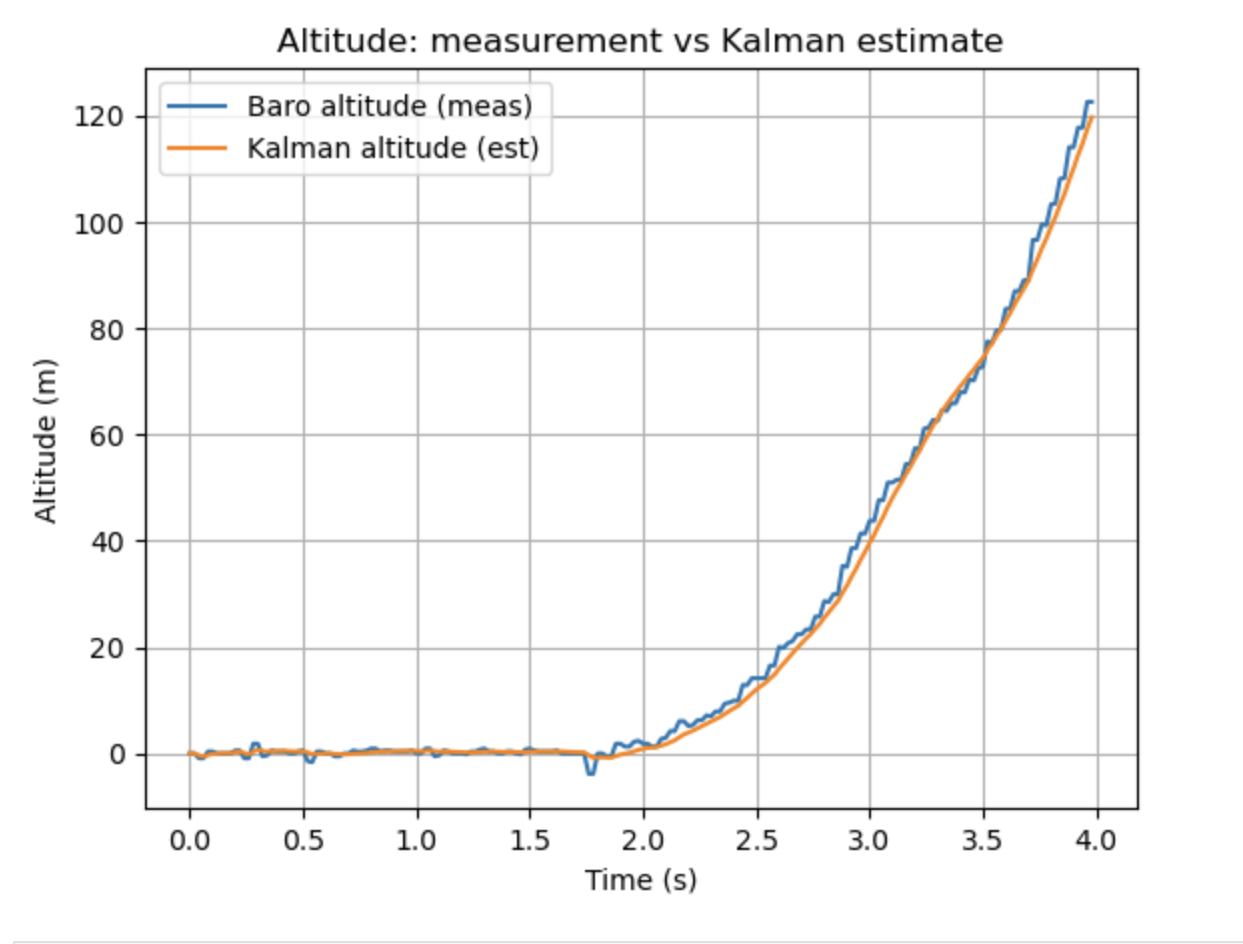

Vertical state (Kalman). A two-state filter with \(\mathbf{x}_k = [h_k,\ v_k]^\top\):

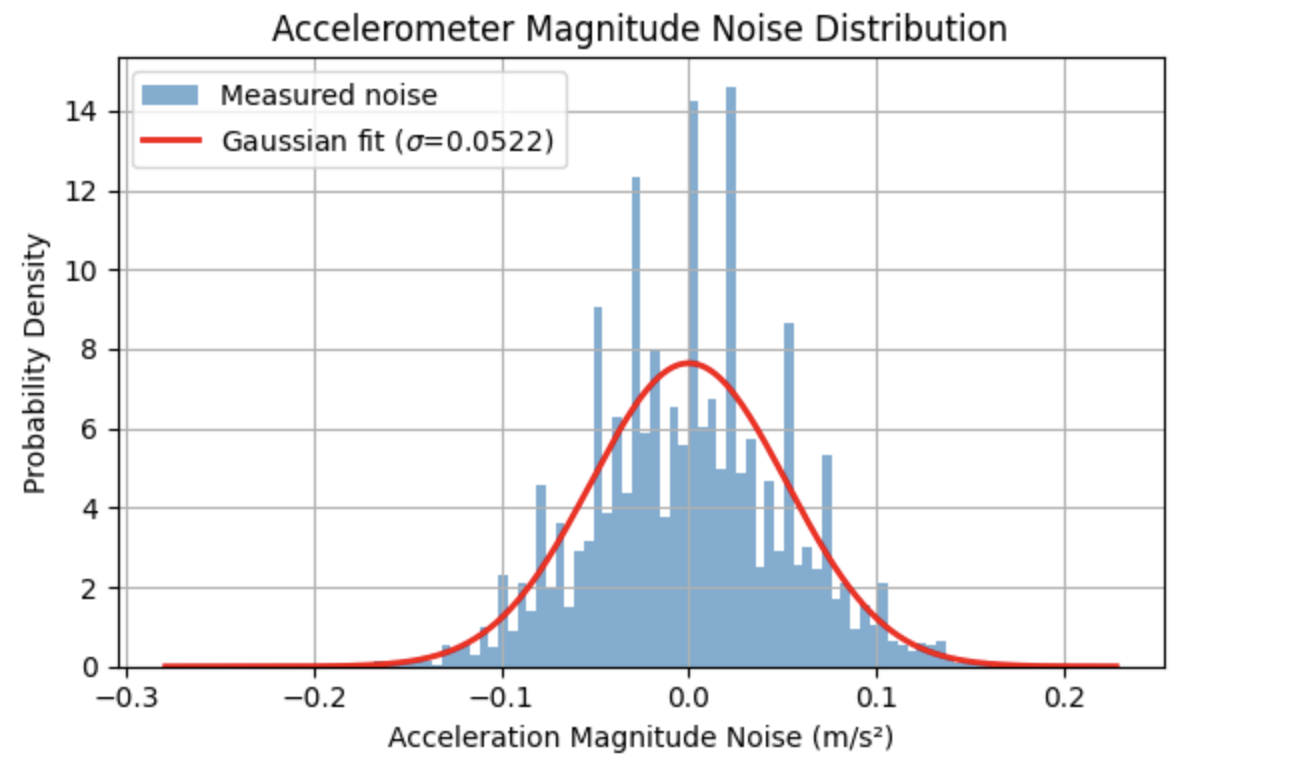

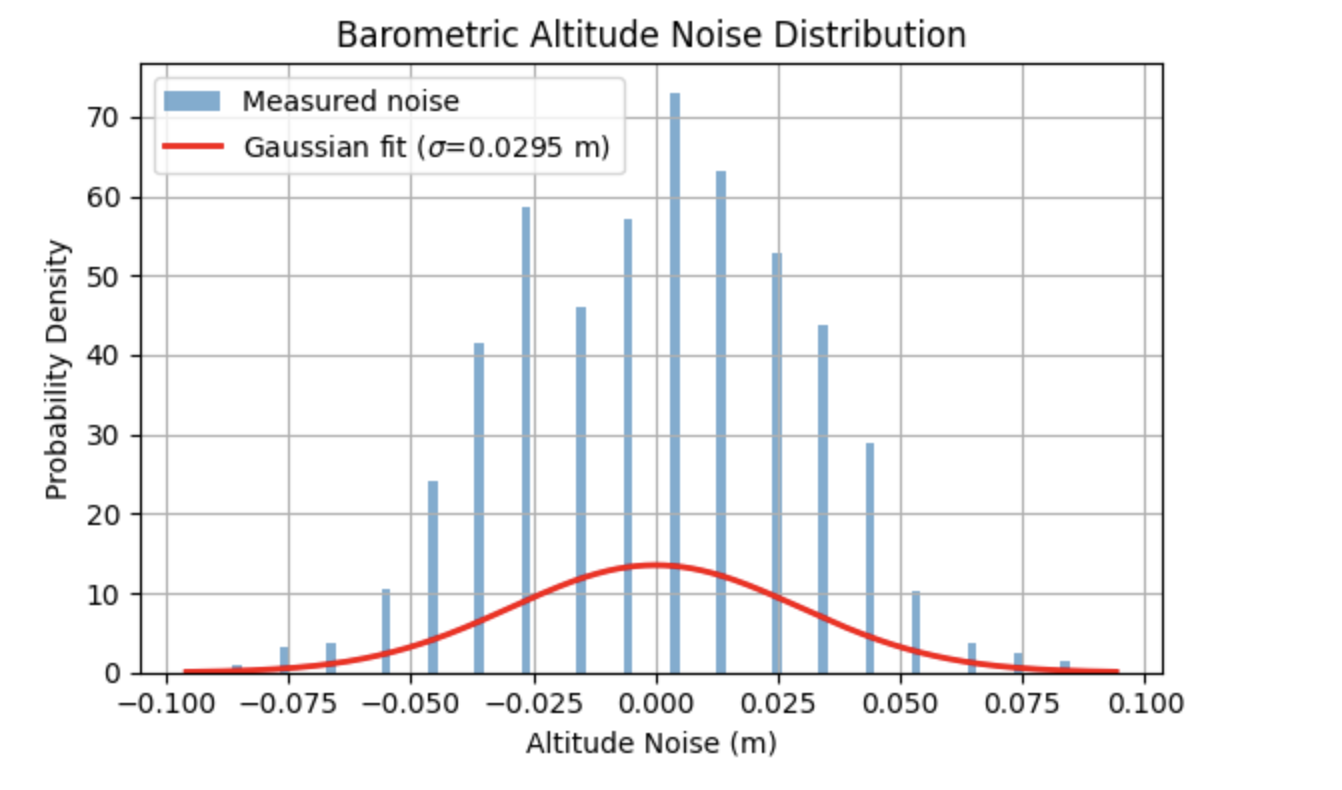

\[\mathbf{x}_{k+1} = \begin{bmatrix}1 & \Delta t\\ 0 & 1\end{bmatrix}\mathbf{x}_k + \begin{bmatrix}\tfrac12\Delta t^2\\ \Delta t\end{bmatrix} u_k + \mathbf{w}_k, \qquad y_k = \begin{bmatrix}1 & 0\end{bmatrix}\mathbf{x}_k + v_k,\]The input \(u_k = a_m\cos\alpha_k - g\) is the IMU acceleration projected onto the vertical axis. The filter predicts at 200 Hz from the IMU and corrects at 50 Hz from the barometer. Its noise parameters come from bench characterization of the actual sensors: accelerometer σ ≈ 0.052 m/s², barometer σ ≈ 0.03 m.

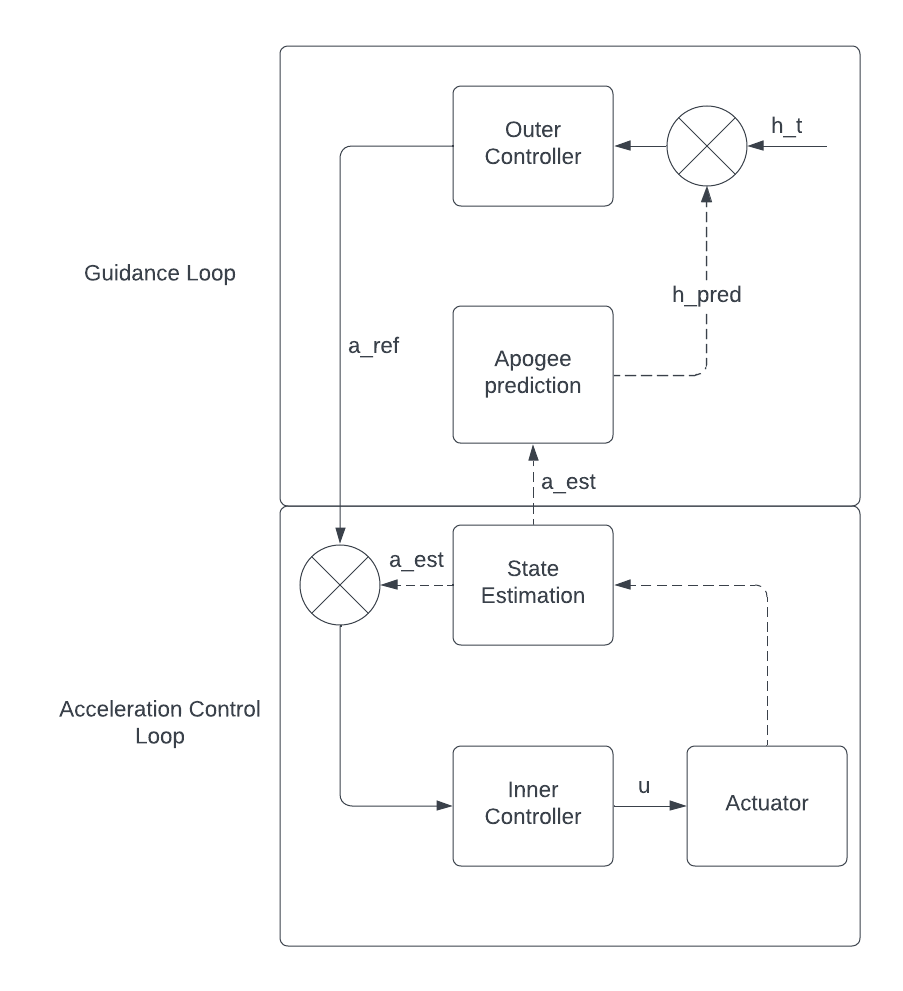

Guidance and control
Drag is modeled as \(D = \tfrac12 \rho v^2 A\, C_D(\theta, \mathrm{Ma})\). The \(C_D\) table comes from Ansys CFD of the flaps across deployment angle and Mach number.
- Apogee prediction. An energy balance on the current \((h, v)\) estimate, with a mean-drag correction from the CFD table.
- Outer loop. Proportional control on the predicted apogee error: \(\theta_{cmd} = K_{P,o}\,(h_{target} - h_{pred})\).
- Inner loop. A PI position controller on the actuator, closed through the Hall-effect encoder: \(u = K_{P,i}\, e_\theta + K_{I,i}\!\int e_\theta\,dt\).
Separating trajectory regulation from actuator dynamics keeps each loop simple to tune and test on its own.

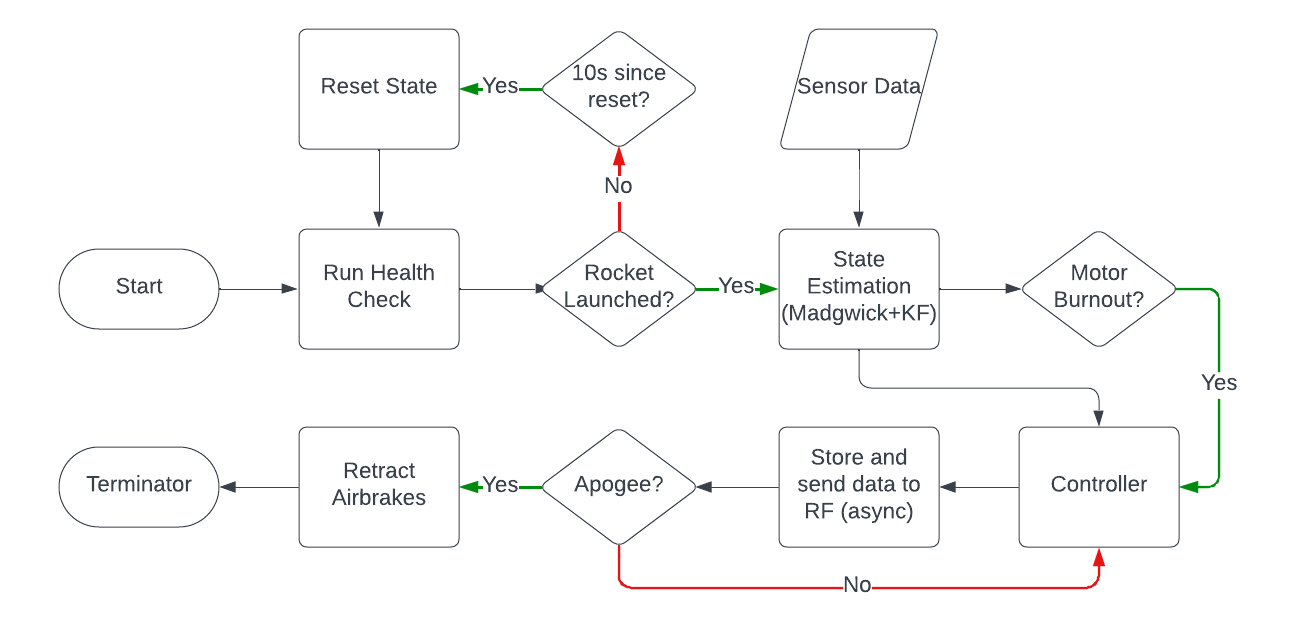

The firmware runs on a fixed-rate cooperative scheduler, with a flight state machine of IDLE → LAUNCHED → COASTING → APOGEE → DESCENT, plus a FAULT state. Deployment is only allowed in COASTING, after burnout, and within the tilt limit.
Hardware-in-the-loop testing
The biggest step up from Vulcan is a HIL simulator. A RocketPy 6-DoF simulation runs on the laptop and is coupled over USB serial to the Teensy running the unmodified flight stack:
- Python sends an
INITpacket with pad pressure and temperature, and the Teensy calibrates its barometer and homes the actuator. - The rocket sits on the pad for a few seconds so the Madgwick and Kalman filters converge.
- Every 5 ms of simulated time (the 200 Hz IMU rate), Python sends one sensor packet and waits. The Teensy replies with its actuator position, and the simulation applies the matching drag from the CFD table.
- The run reports apogee error, firmware estimates against ground truth, and the deployment history.
There are three builds. The first simulates both sensors and actuator, which is deterministic and used for tuning guidance. The second injects simulated sensors but drives the real motor and encoder, paced to wall-clock time so real friction, dead-band and speed are in the loop. The third is a bench-only build for calibrating the actuator.

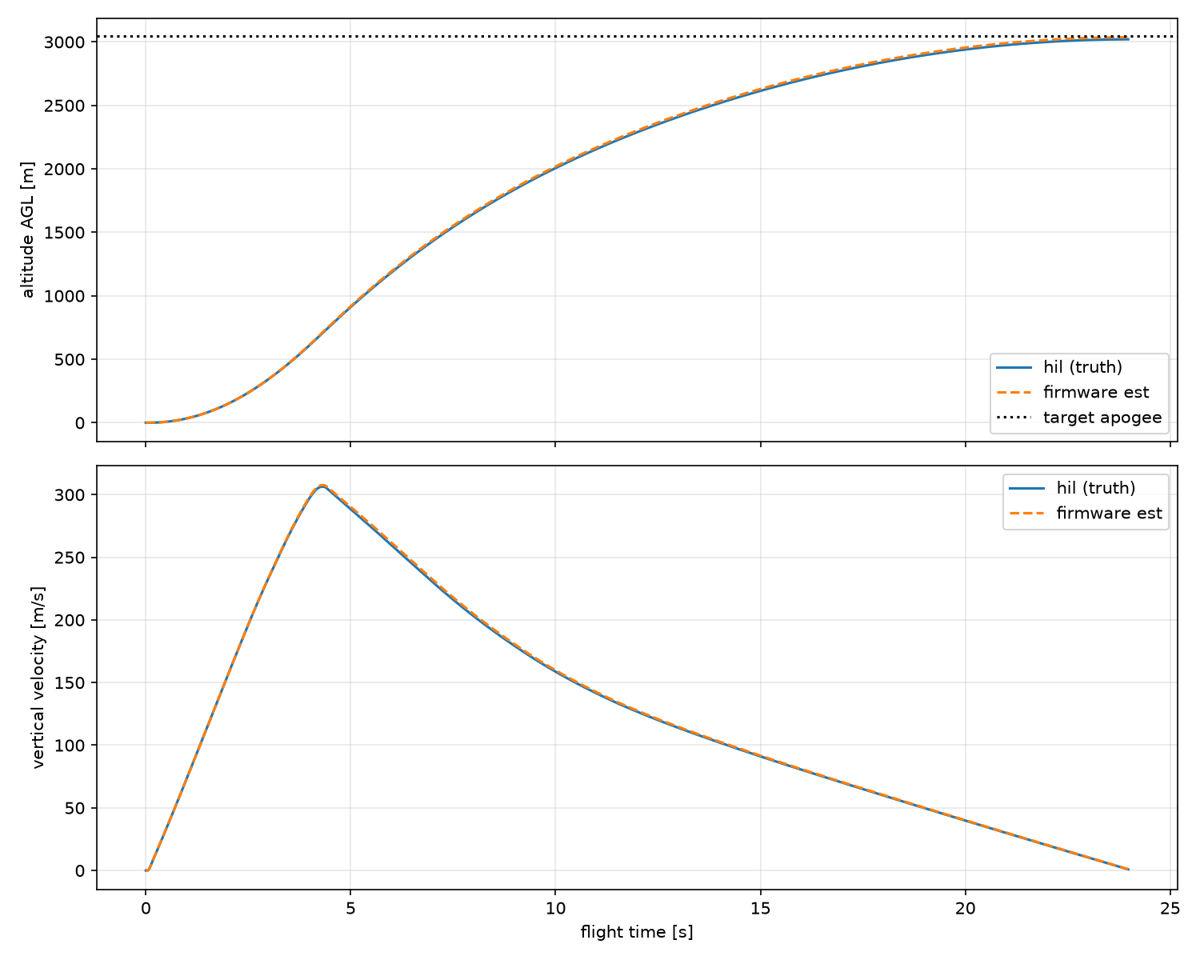

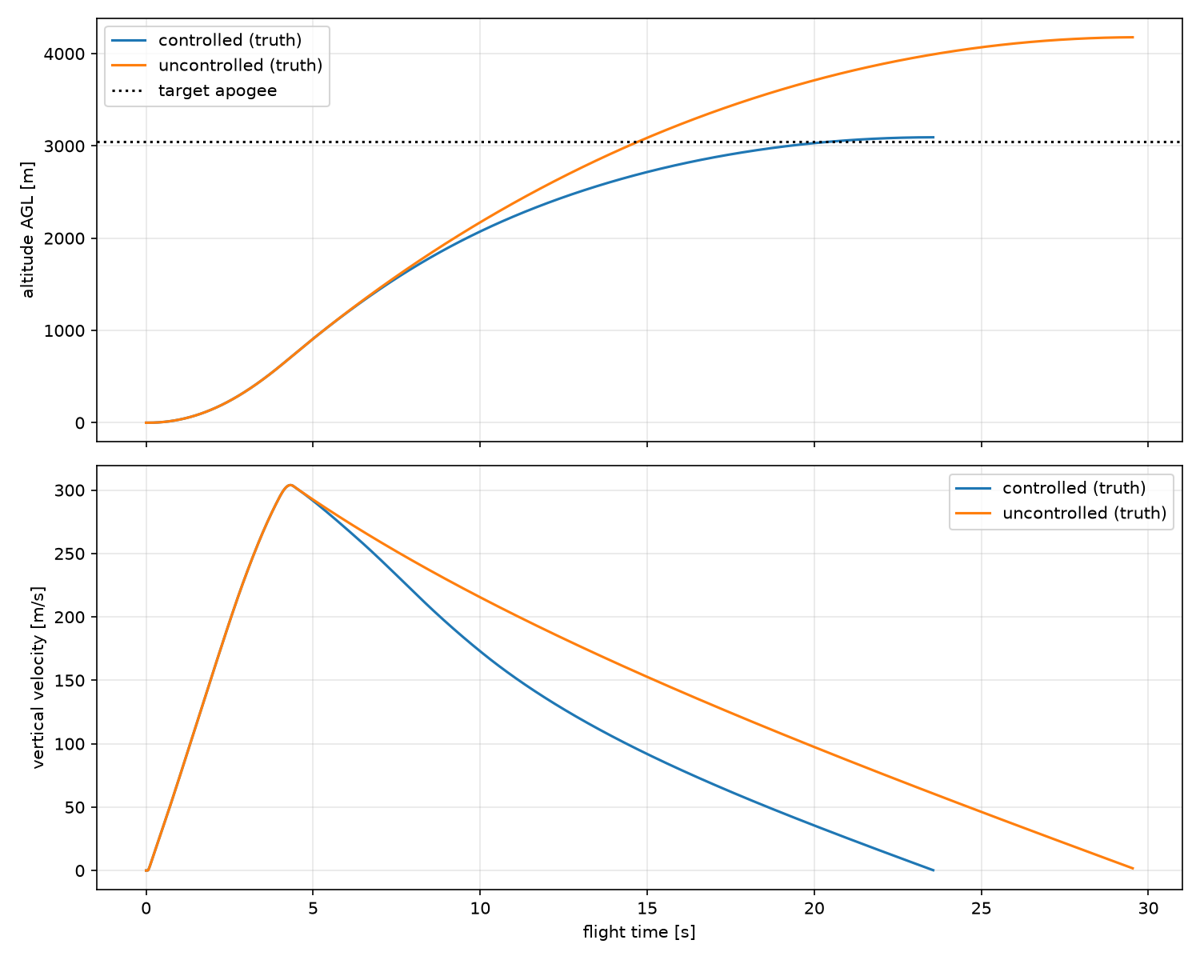

Results so far (simulation): without airbrakes, the simulated flight reaches about 4.2 km. In the latest HIL runs, the firmware brought apogee to 3,021–3,026 m, within about 25 m (under 1%) of the 3,048 m target.
Status and next steps
HADES has not flown yet. The flight has been rescheduled to October 2026. The firmware builds, the protocol tests pass and the HIL loop closes, but it is not yet flight-cleared. Before the October flight, we still need to:
- Add a hardware watchdog and sensor-failure detection that latch FAULT and retract the brakes.
- Add timing margin on the boost inhibit so the brakes can never open under residual thrust.
- Complete a real-hardware run (captive carry or tumble test) to confirm estimator convergence and launch detection on real sensor noise.
- Check the CFD drag table against the as-built flap geometry.
Team
HADES Airbrakes Electrical, 2026: Marcus Wada (Project Lead) · Andrew Bellinger (Theory & Testing) · Ali Beidoun (CFD & Assembly) · Osman Hadi (PCB Design & Schematics) · Resul Ilmammedov (Hardware Prototyping) · David Richardson (Theory)
Support & leadership: Robert Everitt (Chief Electrical Engineer) · Michael Miney (Chief Mechanical Engineer, CFD) · Chase Sutherlin (Airbrakes Mechanical Design) · Prof. Karishma Patnaik (Faculty Advisor)
The trip to IREC 2026
HADES didn’t fly in Texas, but competition week is about more than the launch: a long drive, a lot of Chipotle, and a team that got closer along the way.
